TallTree01
Coo, Man
That is wicked!
I'm both awed and jealous at the same time.
I'm both awed and jealous at the same time.
2,000 Liter Discus Tank
- Thread starter DevotedToDiscus
- Start date
🐠 May TOTM Voting is Live! 🐠
🏆 Click here to Vote! 🏆
OP
OP
DevotedToDiscus
Fish Herder
I will go to the tropical fish market tomorrow, and take you guys along for the ride.....well not literally, not enough room in the car, but I will take some photos and show you all what's on offer here.
TallTree01
Coo, Man
Be sure to take lots of pictures!
OP
OP
DevotedToDiscus
Fish Herder
Will do mateTallTree01 said:Be sure to take lots of pictures!
Looks amazing! Can't wait to see more pics
Hope you have lots of fun shopping tomorrow~
Hope you have lots of fun shopping tomorrow~
OP
OP
DevotedToDiscus
Fish Herder
Will do my best!Axyadbad said:
OP
OP
DevotedToDiscus
Fish Herder
Update.....
I did a bit of a dry goods shopping trip yesterday morning, to get the following items:
Co2 Bottle upgrade and some means of effectively delivering enough Co2.
Wood for scape.
Sand.
Filter media.
Odds and Ends.
"No fish"!!!!! ....... Really don't buy any! Don't!!! Don't do it!, OK, only if they look really nice!
I then had no real plan to be doing anything on the tank until I get back from work in 3 weeks time. However, I actually managed to do way more than I had thought I would. Last night and this morning I did a ton of work on the tank. So am way further on than I had hoped.
I am away at work now, and won't be home for 3 weeks. So rather than write about everything I managed to get done in one go now, I thought it would be better to string it out a little, and explain one aspect every couple of days. That way there won't be a massive gap in the journal.
So coming up a few pictures of my wander around the market.(Not really so much a market, more a big gaggle of shops selling all things fishy).
I did a bit of a dry goods shopping trip yesterday morning, to get the following items:
Co2 Bottle upgrade and some means of effectively delivering enough Co2.
Wood for scape.
Sand.
Filter media.
Odds and Ends.
"No fish"!!!!! ....... Really don't buy any! Don't!!! Don't do it!, OK, only if they look really nice!
I then had no real plan to be doing anything on the tank until I get back from work in 3 weeks time. However, I actually managed to do way more than I had thought I would. Last night and this morning I did a ton of work on the tank. So am way further on than I had hoped.
I am away at work now, and won't be home for 3 weeks. So rather than write about everything I managed to get done in one go now, I thought it would be better to string it out a little, and explain one aspect every couple of days. That way there won't be a massive gap in the journal.
So coming up a few pictures of my wander around the market.(Not really so much a market, more a big gaggle of shops selling all things fishy).
OP
OP
DevotedToDiscus
Fish Herder

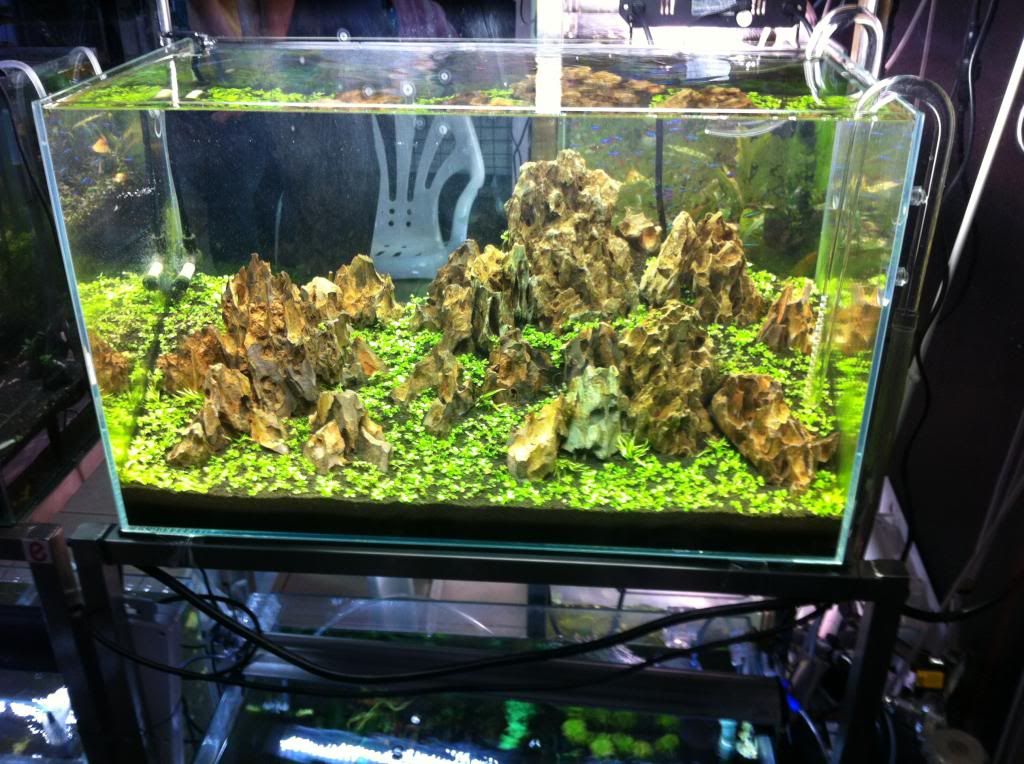

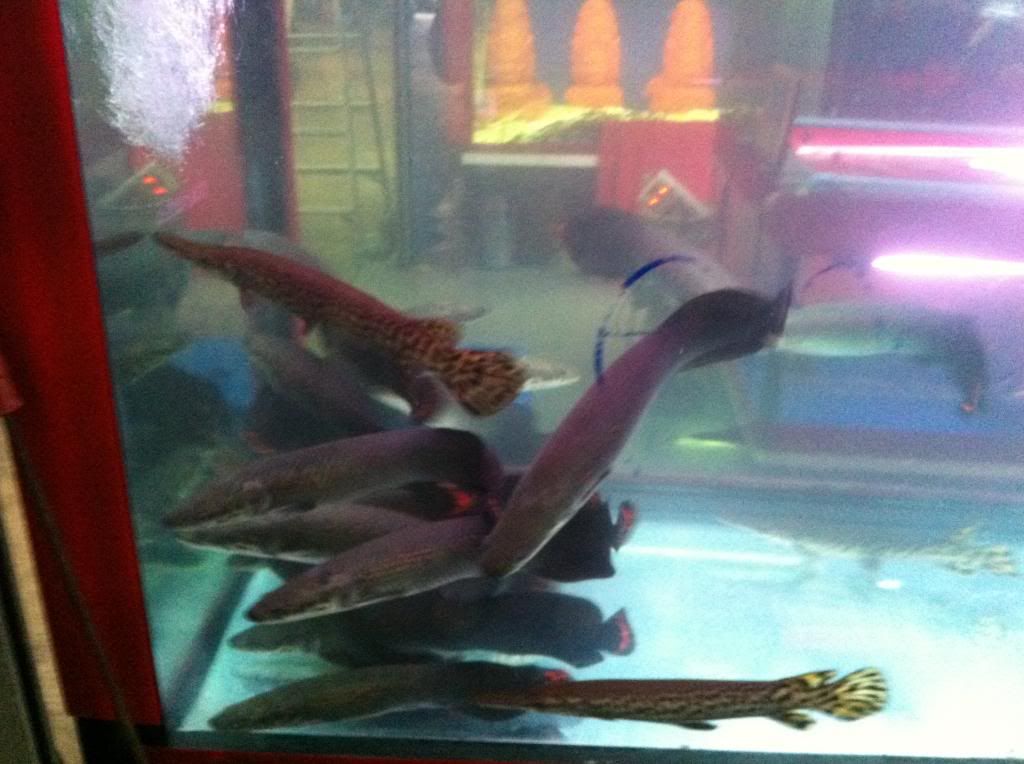

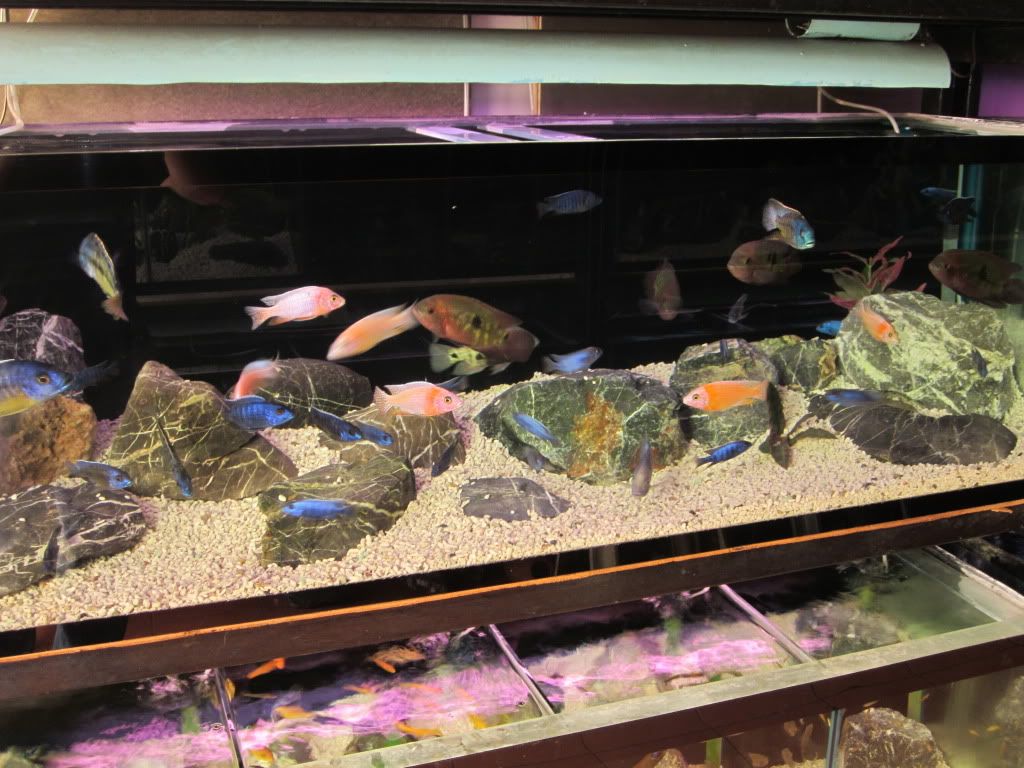

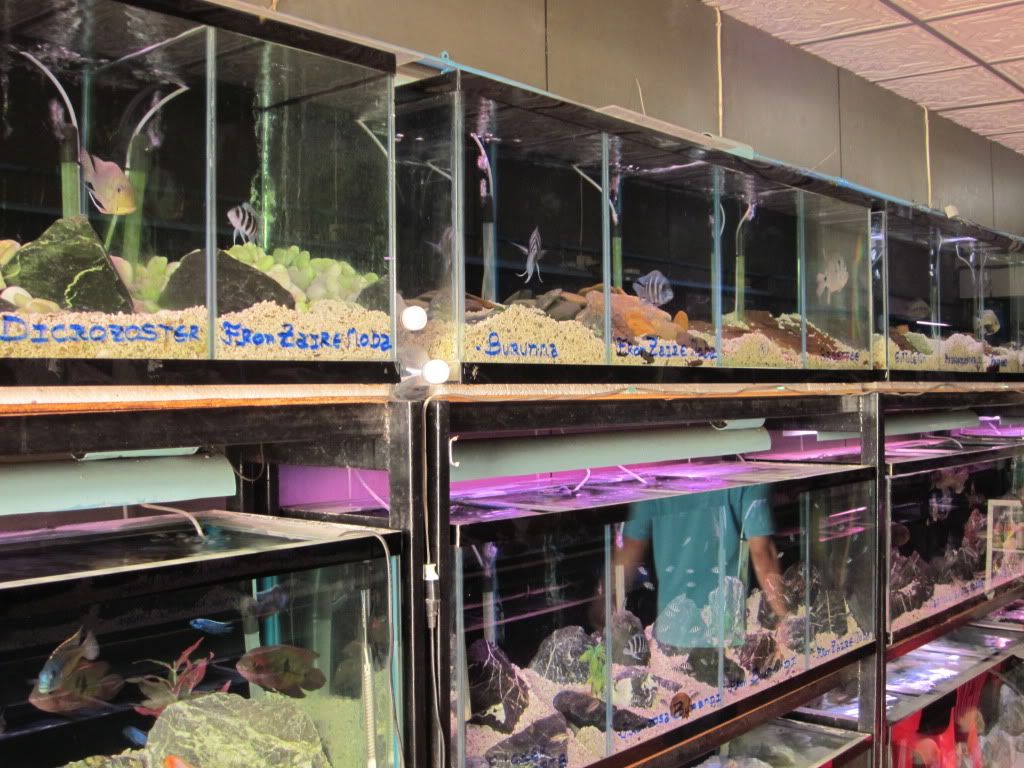

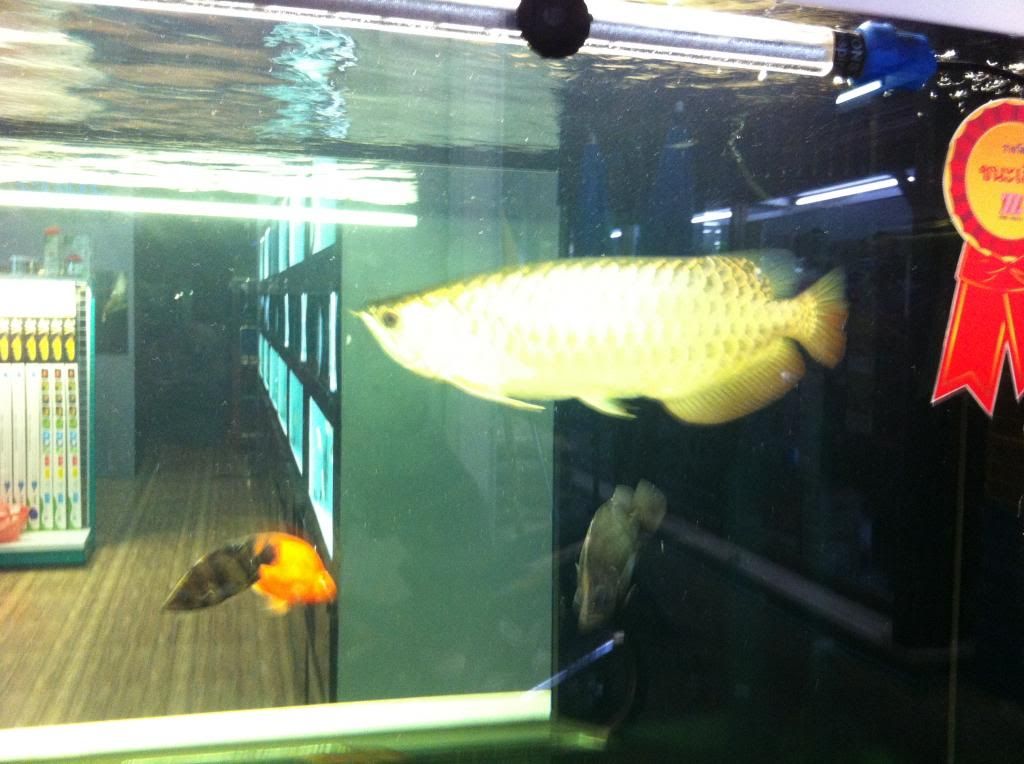

Some pics from yesterday and some from before as my phone battery died while I was there.
[/URL]
[/URL]
[/URL]
Wood anyone?
[/URL]
[/URL]
[/URL]
[/URL]
[/URL]
[/URL]
[/URL]
[/URL]
[/URL]
[/URL]
[/URL]
[/URL]
Wood anyone?
OP
OP
DevotedToDiscus
Fish Herder
Tomorrow I will tell you about my gas!
Something I would not normally be proud of, but in this case it is only Co2, so I have no need to be ashamed!........So long as I have got it right!!!
Something I would not normally be proud of, but in this case it is only Co2, so I have no need to be ashamed!........So long as I have got it right!!!
Looks like you had lots of fun! Nice pics
Hehe, gas
I'm sure you'll get it figured out just fine!
Hehe, gas
I'm sure you'll get it figured out just fine!
Blondielovesfish
Kia Ora
Wow, looks a pretty decents shop! Wish my LFS could be like that!
Can't wait till the next update
Can't wait till the next update
OP
OP
DevotedToDiscus
Fish Herder
Well I have gas!
I was running Co2 on my old tank, but as it is a 450 liter tank I had a relatively small bottle. If I was to simply try and use that system on this tank the gas would be gone in a flash. So I needed a bigger bottle, and also to work out a way of delivering enough Co2 into the water with out too much loss of gas.

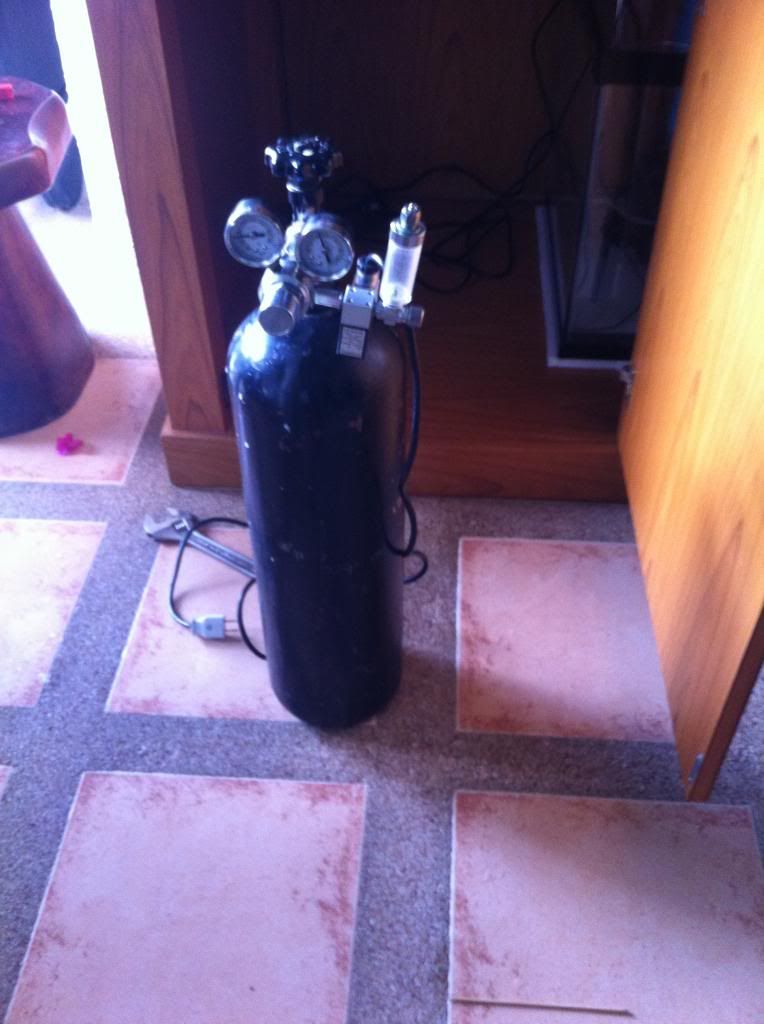

I did a trade in on my old bottle for a much larger one, so that solved that problem. All fittings, and regulator I took from my old unit.
[/URL]
Next task was to sort out a way of getting the best possible dissolve rate in the water. I didn't think that the usual ceramic diffuser would cut it. I am also keen not to have any pipes, tubes, wires, etc. in the tank. I want to keep everything contained in the sump out of site. I looked at some inline Co2 reactors on the internet, and decided to go down that route. However it would be easier and cheaper to build my own.
So I knocked up a reactor using a wide section of pipe, with 2 step downs on each end, so that I could plumb it in to the return pipe, just above the pump. Inside the pipe would go some bio balls, and a small feed valve connector to connect the Co2 hose on to. The way it works is the Co2 enters the bottom of the pipe where the water flow then pushes it through the bio balls, and the bio balls in turn break up the bubbles and swirl them around. This I hoped would give a good dissolve rate. After the reactor the water then has to travel along something like 4 meters of pipe until it gets to the tank, so has even more time to absorb the Co2.

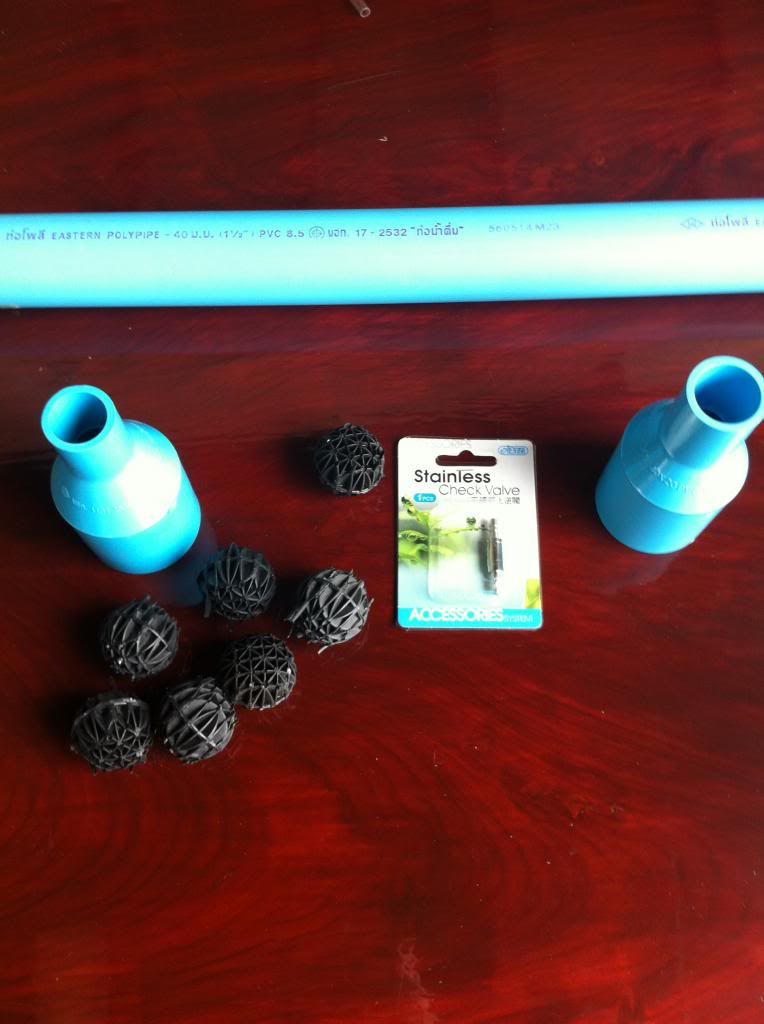

Just a couple of quids worth of bits:
[/URL]

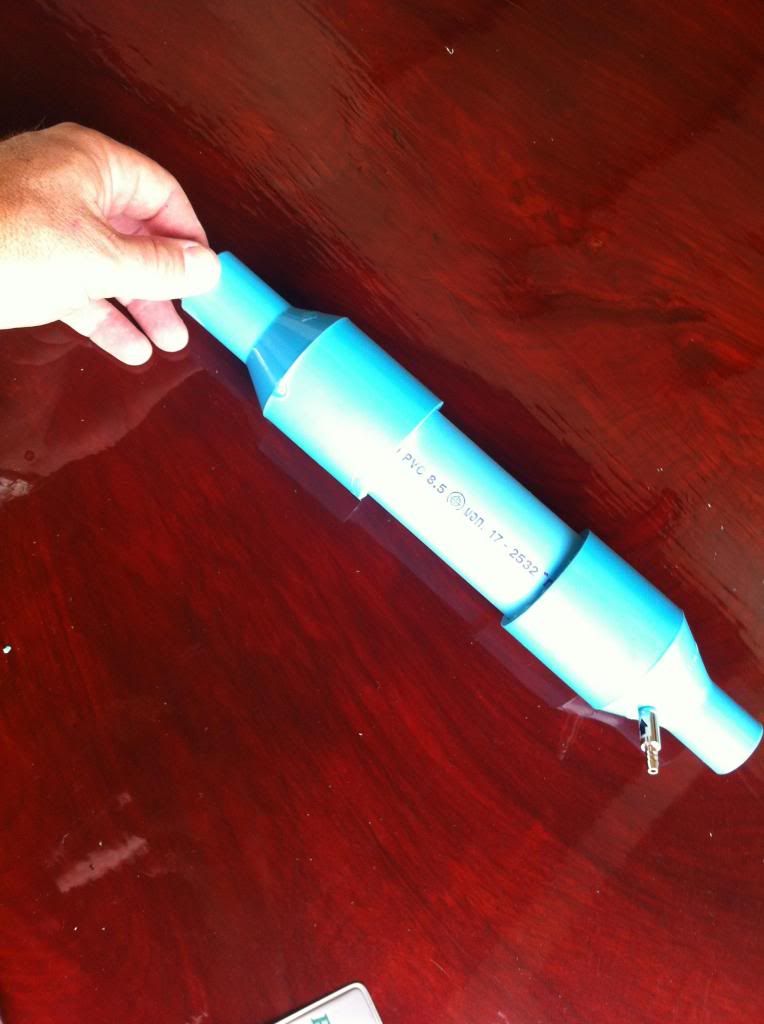

Assembled:
[/URL]

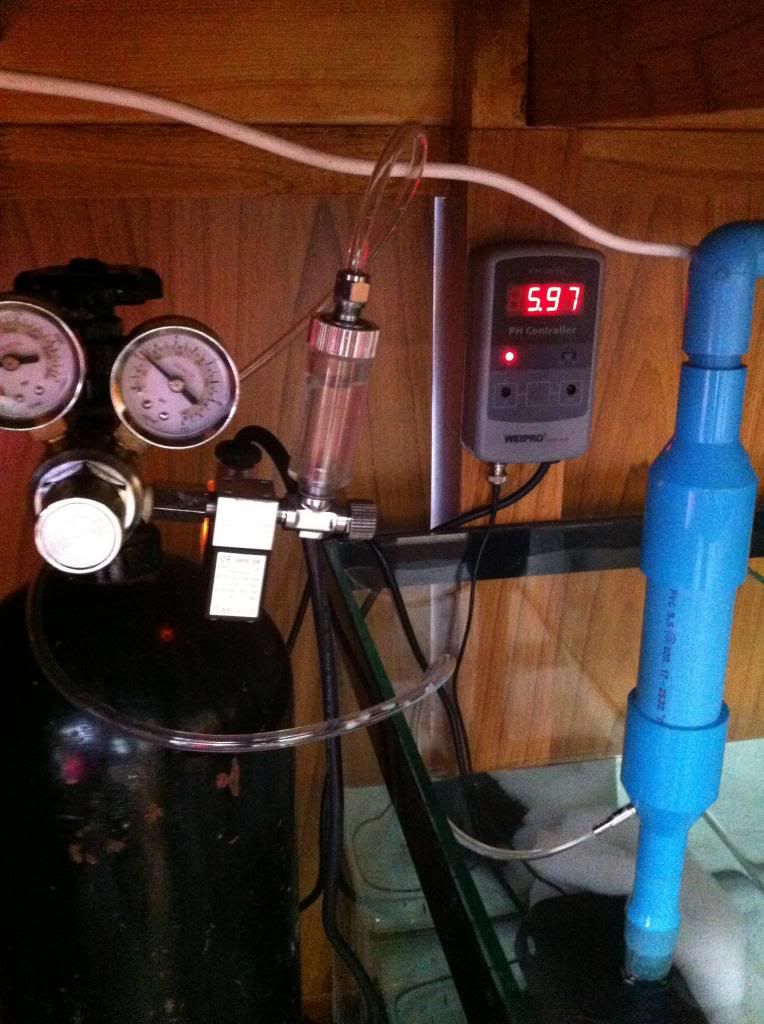

Plumbed in just above the water pump from the sump:
[/URL]
I tested the system and there is only the slightest mist of bubbles exiting the pipe outlet in the tank, so I am fairly confident that I am getting as good a dissolve as I can, and not wasting gas. Time will tell once I have had a chance to run it for a few days. The regulator is controlled by the pH controller, and the sensor for that is positioned in the final part of the sump. So it is measuring the pH at the very end of the chain at the point where the maximum amount of gas loss will have already happened. I am sure it will need some tuning, but I will do that once everything is completed.
I was running Co2 on my old tank, but as it is a 450 liter tank I had a relatively small bottle. If I was to simply try and use that system on this tank the gas would be gone in a flash. So I needed a bigger bottle, and also to work out a way of delivering enough Co2 into the water with out too much loss of gas.
I did a trade in on my old bottle for a much larger one, so that solved that problem. All fittings, and regulator I took from my old unit.
Next task was to sort out a way of getting the best possible dissolve rate in the water. I didn't think that the usual ceramic diffuser would cut it. I am also keen not to have any pipes, tubes, wires, etc. in the tank. I want to keep everything contained in the sump out of site. I looked at some inline Co2 reactors on the internet, and decided to go down that route. However it would be easier and cheaper to build my own.
So I knocked up a reactor using a wide section of pipe, with 2 step downs on each end, so that I could plumb it in to the return pipe, just above the pump. Inside the pipe would go some bio balls, and a small feed valve connector to connect the Co2 hose on to. The way it works is the Co2 enters the bottom of the pipe where the water flow then pushes it through the bio balls, and the bio balls in turn break up the bubbles and swirl them around. This I hoped would give a good dissolve rate. After the reactor the water then has to travel along something like 4 meters of pipe until it gets to the tank, so has even more time to absorb the Co2.
Just a couple of quids worth of bits:
Assembled:
Plumbed in just above the water pump from the sump:
I tested the system and there is only the slightest mist of bubbles exiting the pipe outlet in the tank, so I am fairly confident that I am getting as good a dissolve as I can, and not wasting gas. Time will tell once I have had a chance to run it for a few days. The regulator is controlled by the pH controller, and the sensor for that is positioned in the final part of the sump. So it is measuring the pH at the very end of the chain at the point where the maximum amount of gas loss will have already happened. I am sure it will need some tuning, but I will do that once everything is completed.
