Dave Spencer
Gort! Klaatu barada nikto.

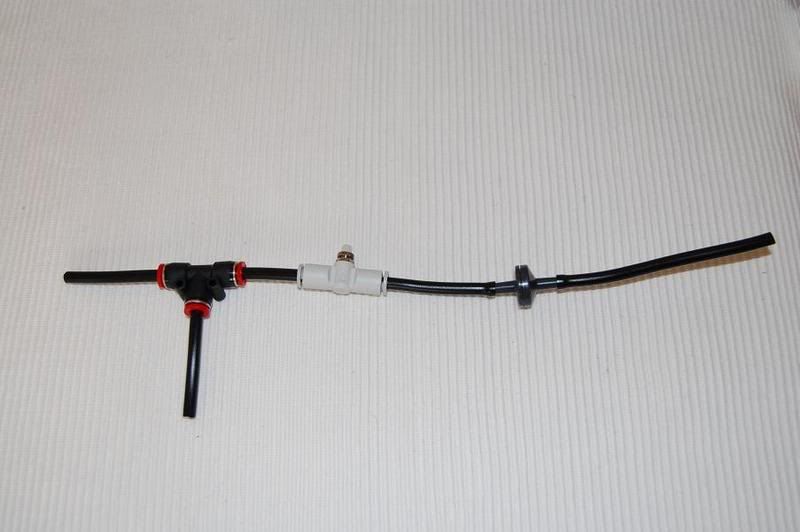

The following picture is a schematic of what I did to tee in to an existing CO2 set up from a second tank.
The CO2 hose at the bottom of the picture is coming from my Aquamas neede valve and connects in to the T piece (black and red item). The branch exiting from the T piece to the left of the picture goes to my 60l Iwagumi. The branch exiting from the right of the T piece goes to my new 24l tank. Next in line in the 24l tank T off is the needle valve (cream coloured item) for controlling the bubble rate to the tank. The final item is the ever essential NRV. Make sure that this is downstream of your needle valve, because any water back feeding to this will eventually corrode it and sieze it up.

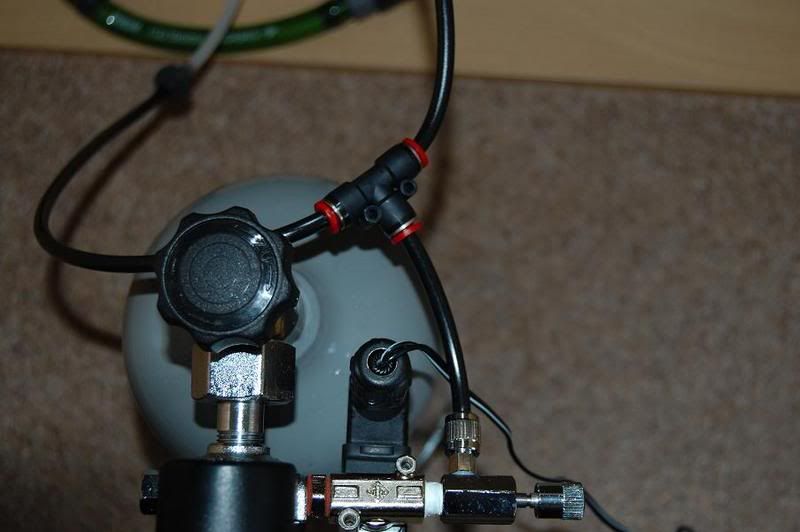

In the next picture you can see the T piece in situ, straight after the needle valve on the Aquamas regulator. The branch to the left goes to the reactor, which is pictured in my 60l journal.

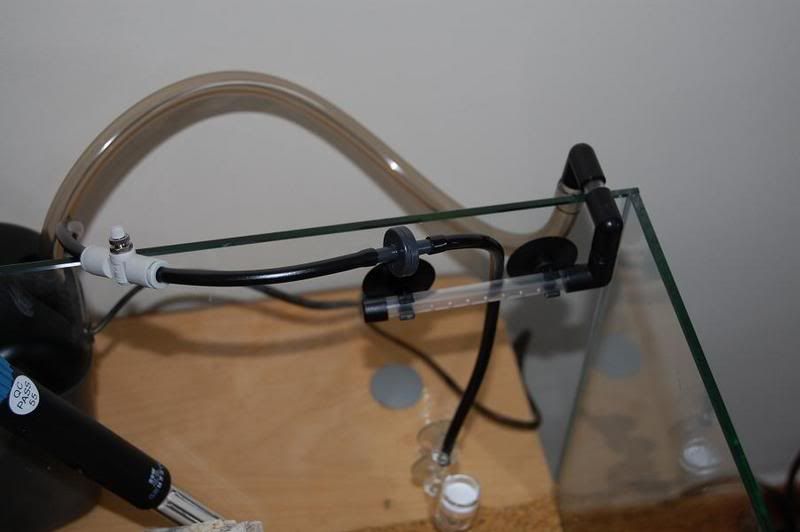

The branch to the right goes to my new 24l set up. Hopefully you can see the needle valve, NRV and finally the CO2 diffuser.
When I set up the 24l tank I will obviously have to adjust the CO2 to the existing tank, as some of it will now be taken by the new tank. One other thing I have done is to incorporate a certain amount of slack in the CO2 line to the second tank because, otherwise, I am bound to move the cylinder at some time and end up yanking the diffuser out of its mounting in the second tank.
I hope somebody will find this useful. Dave.
