Received a lovely gift through the post today! Ahhh a PCB no less - cheers Andy!

Right getting the components on, measured the voltage across 1000uF capacitor C2 and it measure 28vDC.... You said to shout if it goes above 20vDC



[Underwurlde]

Oooo. It works so far then. 28V ok, there is no load on it, just checking that you were gunna check......

(I'm naughty sometimes. But nice.)

Andy



[sophos9]

10uF Capacitor reads 11.88v.... not bad!!



[sophos9]

Right, quick update!

All the components (baring the POT, switch, 10k resistor - forgot to buy that one and link wires) have been soldered onto the board. Will try and pick of those components/wires today!

Andy done an amazing job with the board, its near perfect. Voltages across capacitors and IC's checks out. No pics yet as I finished it late last night but will get some tonight.



[Underwurlde]

You don't have to have the 10K resistor in, you could short it out, that is to say use a piece of linking wire instead. Its is used to simply ensure that there is at least a minimum on-time when the POT is set fully anticlockwise of 1.1 seconds (in hindsight, I think 10.1 secs would have been better, i.e. make this value 100K).

Andy



[sophos9]

Hi fella... Will get a 100k then. When you see the photo, you may even be a little impressed with the soldering, well I did say "may"



[Underwurlde]

Don't tempt me. I'll be posting up some of my professional PCBs with SMT 0603 work on it. With a pin-pead for scale if I can find one....



[sophos9]

Don't tempt me. I'll be posting up some of my professional PCBs with SMT 0603 work on it. With a pin-pead for scale if I can find one....

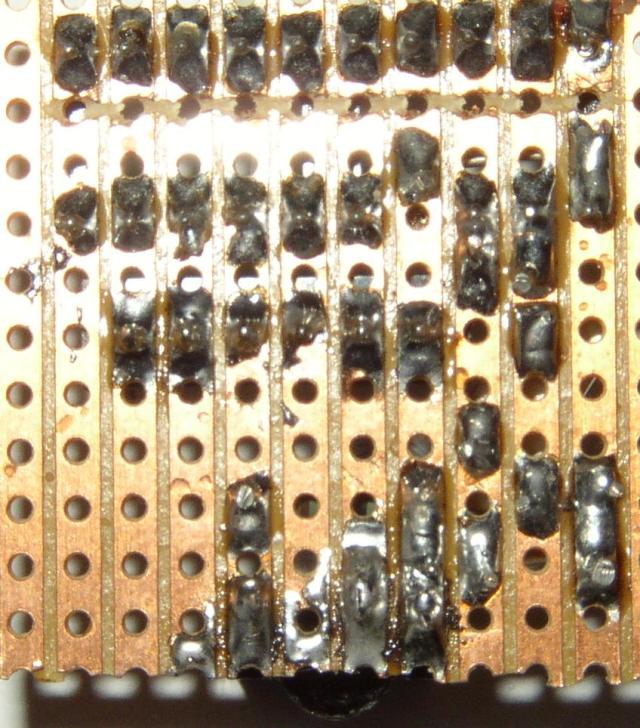

Bummer.... Well check this out, here is a pic of my soldering!!

You like....?















Only joking



[Underwurlde]

Picture is RedX'd. Try again....



[sophos9]

LMAO

Got the resistor, another connector block, buzzer thing and wire so tonight should be able to pull the relay apart and kill myself... Wiring is fun



[Underwurlde]

dry joint city matey!



[sophos9]

I write this feeling pretty damn or is that or maybe even nope, its just plain

So I put a chip in the wrong way around despite checking the drawings a million times, chip is now fried. Luckily I'm still alive (body is), christ this is like an episode from "Some Mothers Do Ave Em"

Anyway, Andy is picking up the pieces - I'm sending everything to him and he is going to sort it so big thanks to Underwurlde



[Underwurlde]

That would be 'Some mothers do 'av 'em'....

Not that I'm kicking you when you're down or anything.

Andy

(PS I like Guiness).



[sophos9]

That would be 'Some mothers do 'av 'em'....
(PS I like Guiness).

Got it just after I posted

Not doing very well really....



[pengy666]

The one in the picture above is a Aqua Digital Water Level Controller, this is selling for £79 so at £40 - thats an unreal price - where did you see that one and is it def new?

The alternative is a Tunze Osmolator which is selling at £99 (others do it for £119!?!?).

The other market offering is the SP3000 which is selling for £78.99

Yes it is for real and it is for new,and yes that is the one!

its £44.14 plus around £10-15 postage with insurance, it is from a shop in china!

hes got lots of stuff for sale inc chiller and fan, ozone processers, skimmers, UV sterilisers, HOB overflow octopuss weir, lighting inc metal halide ballast, wave makers and PH controllers!

all from ebay 100% 649 feedback!
